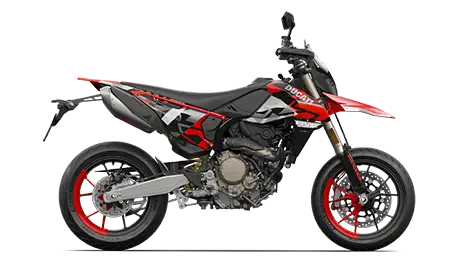

Hypermotard 698 Mono

Tipo

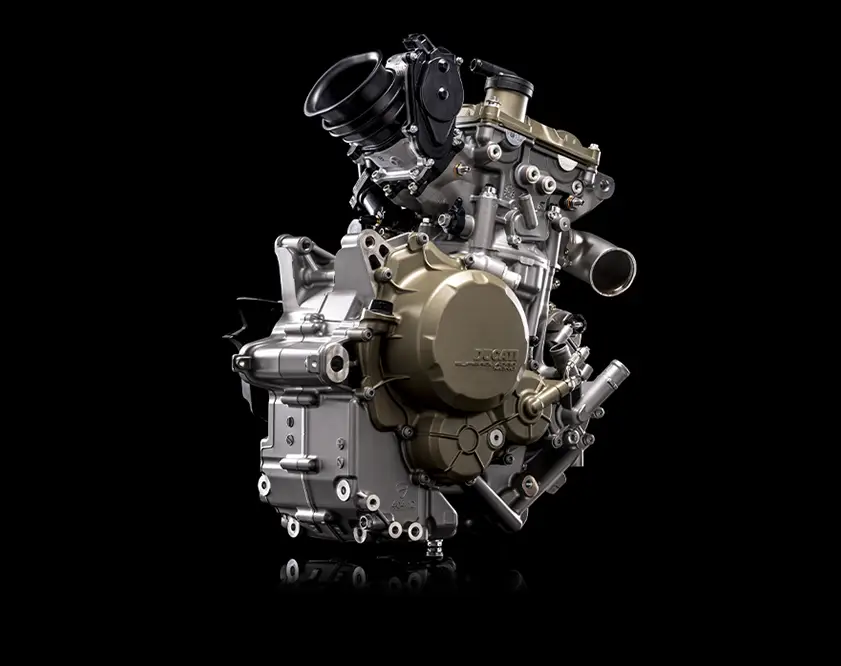

Superquadro Mono, single-cylinder, 4 valves per cylinder, Desmodromic timing, 2-balance countershafts, liquid cooled

Cilindradas

659 cc

Diâmetro x Curso

116 x 62.4 mm

Taxa de Compressão

13.1:1

Potência

57 kW (77.5 hp) @ 9,750 rpm

Torque

63 Nm (46.5 lb-ft) @ 8,000 rpm

Injeção de Combustível

Electronic fuel injection system, Øe 62 mm throttle body with full Ride by Wire system

Escapamento

1-2 exhaust system, double aluminium mufflers, catalytic converter and lambda probe

Caixa de Engrenagens

6 speed with Ducati Quick Shift Up/Down

Transmissão Primária

Straight cut gears; Ratio 1.968:1

Razão

1=36/13 2=35/17 3=32/20 4=29/22 5=24/21 6=26/25

Transmissão Secundária

Chain 520; Front sprocket 15; Rear sprocket 42

Embreagem

Slipper and self-servo wet multiplate clutch, hydraulic control

Quadro

Tubular steel Trellis frame

Suspensão Dianteira

Ø 45 mm Marzocchi fully adjustable aluminium fork

Rueda delantera

Y shaped 5-spoke light alloy 3.5" x 17"

Pneu dianteiro

Pirelli Diablo Rosso IV, 120/70 ZR17

Suspensão Traseira

Progressive linkage with Sachs fully adjustable monoshock. Aluminium double-sided swingarm

Roda traseira

Y shaped 5-spoke light alloy 5.0" x 17"

Pneu traseiro

Pirelli Diablo Rosso IV, 160/60 ZR17

Curso da Roda (Dianteira / Traseira)

215 mm (8.5 in) - 240 mm (9.4 in)

Freio dianteiro

Ø 330 mm aluminium flange disc, Brembo M4.32 caliper, radial pump with adjustable lever, with Bosch Cornering ABS

Freio traseiro

Ø 245 mm disc, single piston floating caliper, with Bosch Cornering ABS

Instrumentação

3.8" LCD display with Improved Black Nematic (IBN) technology

Peso bruto sem combustível

151 kg (333 lb)

Altura do assento

904 mm (35.6 in), 889 mm (35.0 in) with low seat accessory, 849 mm (33.4 in) with low seat + low suspension kit accessory

Distância entre Eixos

1,443 mm (56.8 in)

Rake

26.1º

Trail

108 mm (4.2 in)

Capacidade do Tanque de Combustível

12 l (3 US gallons)

Número de assentos

2

Equipamentos de Segurança

Riding Modes, Bosch Cornering ABS, Ducati Traction Control (DTC), Ducati Wheelie Control (DWC), Engine Brake Control (EBC), Ducati Brake Light (DBL)

Equipamento Padrão

Power Modes, Ducati Power Launch (DPL), Ducati Quick Shift (DQS) Up/Down, Full LED lighting system, Daytime Running Lights (DRL), Tapered aluminium handlebars, Lithium-ion battery

Equipamentos Inclusos

Passenger footpegs

Equipada para

Anti-theft system, Heated grips, Ducati Multimedia System (DMS).

Garantia

24 months unlimited mileage

Intervalos de Manutenção

15,000 km (9,000 mi)/24 months

Ajuste de Válvulas

30,000 km (18,000 mi)
